The Huawei SUN2000-36KTL-M3 is a powerful inverter that performs an indispensable task in the PV system: It converts the direct current into alternating current. With its high efficiency, it is the right solution for demanding system operators. Behind the dimensions of 640 x 530x 270 mm, the Huawei SUN2000-36KTL-M3 inverter offers a lot of state-of-the-art technical finesse. The weight is 43 kg - including the mounting plate. As with all Huawei Solar products, installation is simple and commissioning can be completed in just a few minutes using the app. RS485 communication is provided for data exchange with the Smart Logger and Smart Power Meter.
- HUAWEI SUN2000-36KTL-M3 - General Data
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2.000 m)
Cooling: Smart Air Cooling
Noise development: < 46 dB
DC connection: Stäubli MC4
AC connection: Cable lugs on M8 connection bolt
Topology: Transformerless
Weight (incl. mounting bracket): 43 Kg
Dimensions (incl. mounting bracket): 640 x 530 x 270 mm
Protection class (according to IEC 60529): IP66
PID consumption: 5W
Energy consumption at night: ≤ 5.5 W
- Huawei SUN2000-36KTL-M3 - Communication
Display: LED display
RS485: Yes
USB: WLAN/Ethernet via Smart Dongle-WLAN-FE (optional), 4G/3G/2G via Smart Dongle-4G (optional)
Monitoring BUS (MBUS): No (from Prod. No. 01075485-071)
- HUAWEI SUN2000-30KTL-M3 - Input DC
Max. Input voltage: 1,100 V
Max. Current per MPPT : 26 A
Max. Short circuit current per MPPT: 40 A
Starting voltage: 200 V
MPPT operating voltage range: 200 V to 1,000 V
Rated input voltage: 600 V
Number of MPP trackers: 4
Max. number of inputs per MPPT: 26
A Number of inputs per MPPT: 2
- HUAWEI SUN2000-36KTL-M3 - Output AC
Rated power: 36000 W
Maximum apparent power: 40000 VA
Rated output voltage: 230 Vac / 400 Vac, 3W/N+PE
AC line frequency: 50 Hz / 60 Hz
Rated output current: 52 A
Maximum output current: 58 A
Adjustable power factor: 0.8 kap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%
- HUAWEI SUN2000-36KTL-M3 - Efficiency

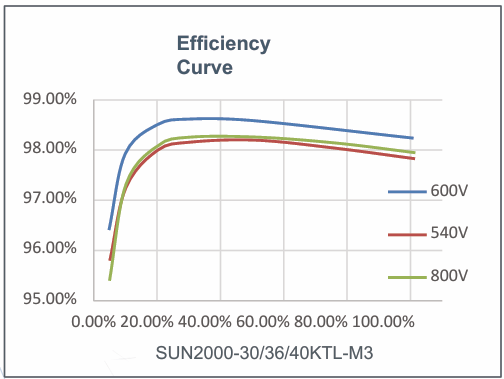

Max. Efficiency: 98.7 %
European efficiency: 98.4 %
- HUAWEI SUN2000-36KTL-M3 - Module Optimizer
DC MBUS-compatible optimiser: SUN2000-450W-P
- Huawei SUN2000-36KTL-M3 - Safety Standards
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
- Huawei SUN2000-36KTL-M3 - Mains Connection Standards
IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution Nr.7, NRS 097-2-1, AS/NZS 4777.2, DEWA
Further information on conformity to standards available on request.
- HUAWEI SUN2000-36KTL-M3 - included in the scope of delivery
PV Connector
Bluetooth Dongle
Bracket
- 5-Year Warranty (Can be extended)
Download User Manual - Fusion Solar App (EN)

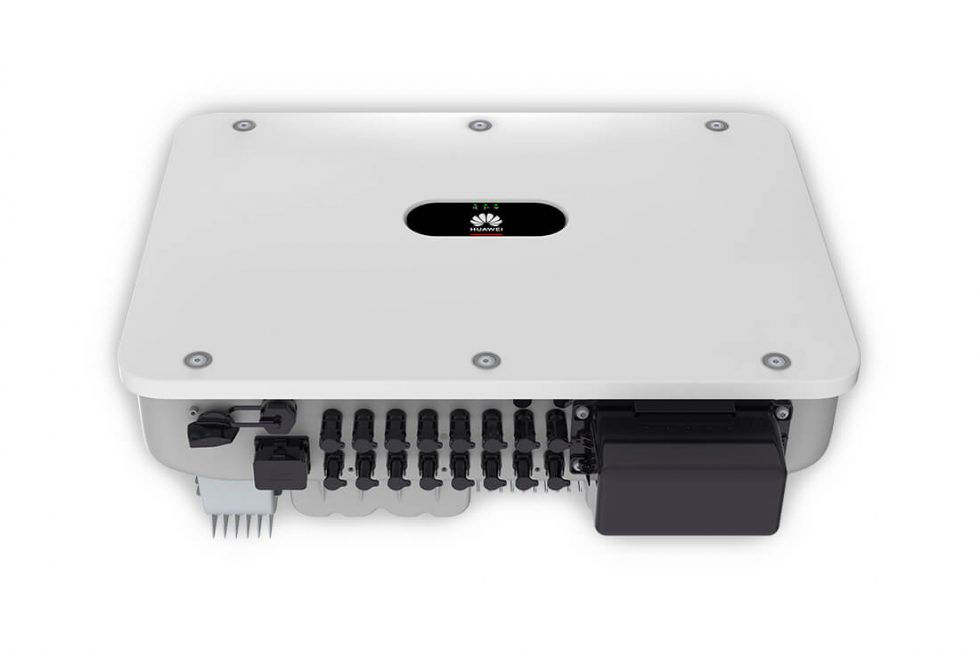

Huawei SUN2000-36KTL-M3 inverter
A big advantage of the Huawei SUN2000-36KTL-M3 is the factory-supplied overvoltage protection (type 2 for AC and DC) as well as four independent MPP trackers are innovative details. In addition, the module operates pleasantly quietly, because the cooling takes place without a fan by natural convection. The maximum power of the Huawei SUN2000-36KTL-M3 inverter is 40,000 watts. The MPPT operating voltage range is from 200 V to 1,000 volts. With a maximum efficiency of 98.7 percent and a European efficiency of 98.4 percent, the device achieves tremendous efficiency.
For detailed information on installation, electrical connections, commissioning, maintenance, and troubleshooting, you can refer to the Huawei Technical Support documentation.
Here are some key specifications for these inverters:
- 3-phase inverter with 40,000VA Power
- 4 independent MPP trackers
- 8 DC connections
- Efficiency up to 98.7%
- Communication via WLAN / Ethernet & 2G/3G/4G (optional)
- Free system monitoring with FusionSolar
- RS485 for Smart Power Sensor and SmartLogger
- Connection for ripple control receiver
- DC MBUS communication for Smart Optimizer
- Integrated AC and DC overvoltage protection TYPE II
- Integrated PID recovery
- Convection cooling
- Protection class IP66
