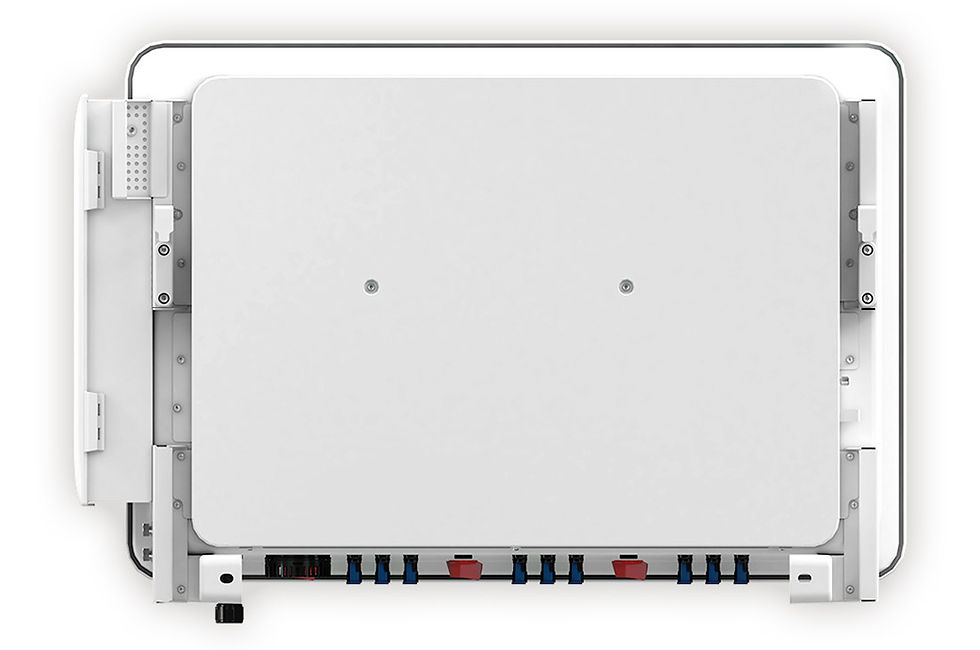

HUAWEI SUN2000-100KTL-M2 inverter is an uncompromisingly powerful module for large-scale solar power systems. It converts the generated electricity from sunlight into grid-standard alternating current. This is available on site or for feeding into the grid. The dimensions of 1035 x 700 x 365 mm are compact for an inverter of this power class, the weight is 93 kg. Installation is therefore best done in pairs or threes. DC connection to the PV system is via plug-in connections, so commissioning is completed quickly. The Huawei FusionSolar app helps with the setup. The HUAWEI SUN2000-100KTL-M2 inverter also connects effortlessly with smart components. It supports RS485 communication, for example, with the smart logger. The data can be viewed via the FusionSolar management system. In summary, the HUAWEI SUN2000-100KTL-M2 inverter offers numerous advantages, including the module already has overvoltage protection (type 2 for DC and AC). In addition, ten independent MPP trackers are installed at the factory. Another pleasant feature is the low noise level thanks to modern Smart Air Cooling. The power of 115,000 watts meets the needs of a large system, the MPPT voltage range is between 200 and 1000 volts. The maximum efficiency reaches an amazing 98.8%, the European efficiency 98.6%. All this ensures a high yield in operation.
- HUAWEI SUN2000-100KTL-M2 - General Data
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2.000 m)
Cooling: Smart Air Cooling
Weight (incl. mounting bracket): 93 Kg
Dimensions (incl. mounting bracket): 1,035 x 700 x 365 mm
Protection class (according to IEC 60529): IP66
- Huawei SUN2000-100KTL-M2 - Communication
Display: LEDindicators; WLANadaptor+FusionSolarAPP
RS485 / USB / MBUS (isolation transformer required): Yes
Communication: RS485, 4G/3G/2G (via 4G dongle - optional), MBUS (works with Smartlogger300A03 - transformer required)
- HUAWEI SUN2000-100KTL-M2 - Input DC
Max. Input voltage: 1,100 V
Max. Current per MPPT : 30 A
Max. Short circuit current per MPPT: 40 A
Starting voltage: 200 V
MPPT operating voltage range: 200 V to 1,000 V
Nominal Input Voltage: 600V @ 400Vac, 720V @480Vac
Number of inputs: 2
Number of MPP trackers: 10
- HUAWEI SUN2000-100KTL-M2 - Output AC
Rated power: 100,000 W
Maximum apparent power: 110,000 VA
Rated output voltage: 480 V/ 400 V, 3W+(N)+PE
AC line frequency: 50 Hz / 60 Hz
Nominal Output Current: 144.4 A @ 400 V, 120.3 A @480 V
Maximum output current: 160.4 A @ 400 V, 133.7 A @480 V
Adjustable power factor: 0.8 kap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%
- HUAWEI SUN2000-100KTL-M2 - Efficiency
Max. Efficiency: 98.6%@ 400V, 98.8%@480V
European efficiency: 98.4%@ 400V, 98.6%@480V
- Huawei SUN2000-100KTL-M2 - Safety Standards
EN62109-1/-2, IEC62109-1/-2,EN50530, IEC62116, IEC61727, IEC60068, IEC61683
- Huawei SUN2000-100KTL-M2 - Grid Connection Standards
VDE-AR-N4105, VDE 4110, EN50549-1, EN50549-2, RD661, RD1699, C10/11
Further information on conformity to standards is available on request.
- HUAWEI SUN2000-100KTL-M2 - included in the scope of delivery
PV connector
Bluetooth dongle (for commissioning via FusionSolar app)
Bracket
- 5-Year Warranty (Can be extended)
Huawei SUN2000-100KTL-M2 inverter
For detailed information on installation, electrical connections, commissioning, maintenance, and troubleshooting, you can refer to the Huawei Technical Support documentation.
Here are some key specifications for these inverters:
- 3-phase inverter with 110,000VA power output
- 10 independent MPP trackers
- Installation via FusionSolarApp
- Efficiency up to 98.8%
- Communication via 4G* and MBUS**
- RS485 and for Smart Logger connection
- AC and DC overvoltage protection
